Description

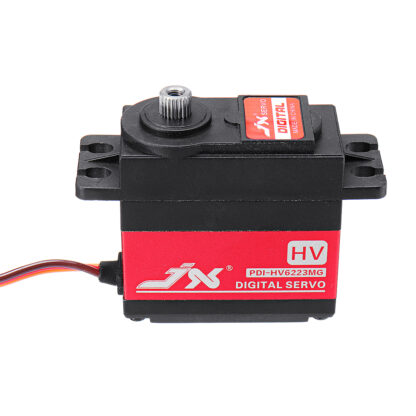

The JX PDI-HV6223MG is a high-voltage digital standard-size servo delivering 23kg·cm at 8.4V. It has high-precision, hard-anodised aluminium gears (made in Taiwan), a CNC aluminium middle case and dual ball bearings, making it a strong choice for large models running on a 2S LiPo.
Specification
- Stall torque: 19.2 kg·cm at 6.0V, 23 kg·cm at 8.4V
- Speed: 0.18 sec/60° at 6.0V, 0.16 sec/60° at 8.4V
- Dead band: 2μs; frequency 1520μs / 330Hz
- Size: 40.5 × 20.2 × 38mm; weight 62g
- Lead: 265mm, JR connector
- Dual ball bearings
In the box: 1 × JX PDI-HV6223MG servo.
Need longer leads? See our 22AWG servo extension leads.
