RCGF STINGER  26CC Rear exhaust 2 Stroke Engine.

100% ORIGINAL RCGF STINGER

Glow size – Powerful and stable !

Latest Design & More Power

The NEW 26cc RE is the latest design engine. Better cooling performance, Strong Power give you unprecedented flying experience.

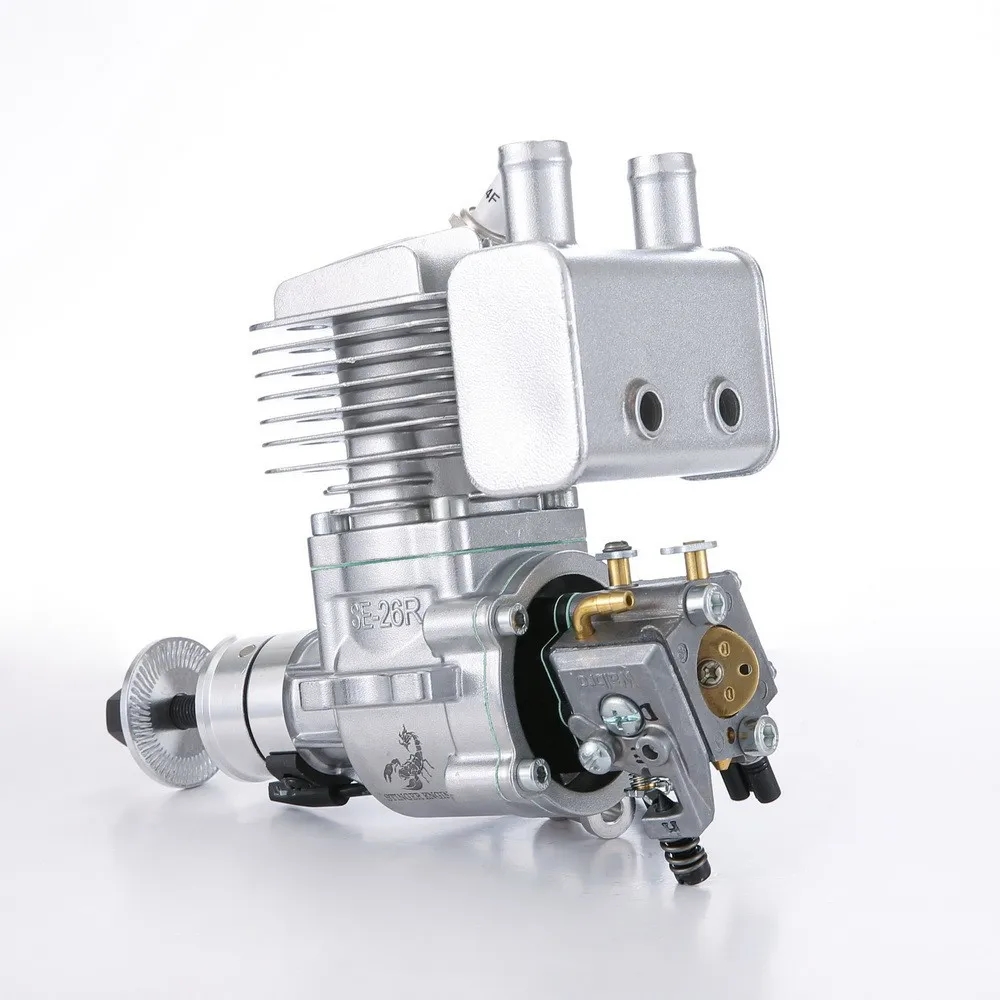

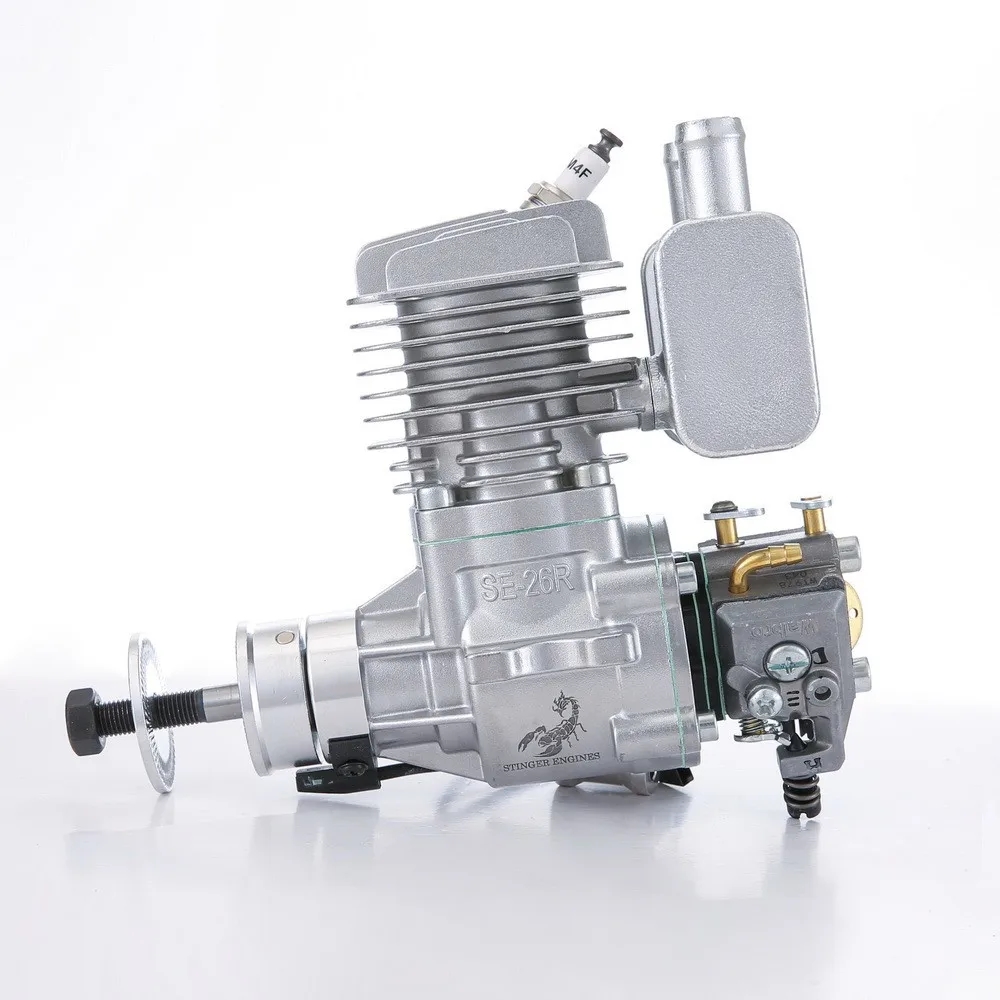

RCGF 26cc RE -Stinger

Specifications:

Type : 2 cycle piston valve type gasoline engine for airplane

Displacement (cc) : 26cc (1.59 cu in)

Bore x Stroke (mm): 1.3 in (34mm)*1.1 in (28mm)

Carburetor : Walbro

Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)

Power supply: 6-14V

SPARK PLUG: CM6 (M14 X1,L-36mm)

Maximum Output : 3.1 hp

Requires: Gasoline, 2-cycle oil, ignition battery & propeller

speed rang : 1800-9800rpm

Fuel: Pre-mixed petrol:oil. 25:1 run in and 40:1

Lubrication Oil : 2 cycle engine oil Fully synthetic 40:1 racing oil is recommended, Stihl also

Propeller : 18*8 (Standard Two blade prop)

Recommended props :16X8,16X10,17X8,18X8,18X10

Cooling System : Air Cooled

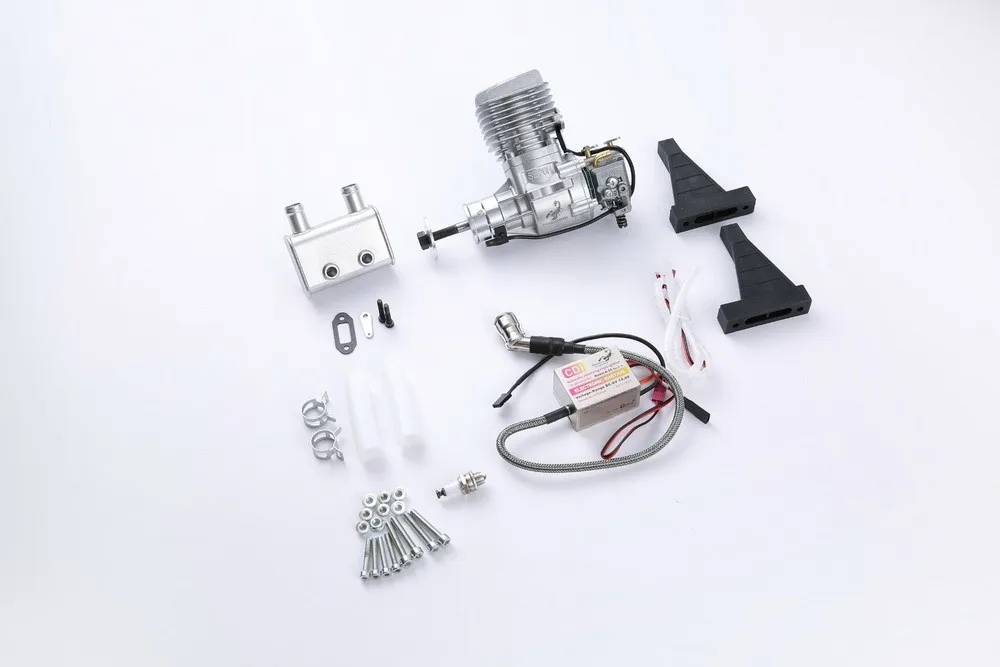

RCGF Stinger Engine package Includes:

electronic CDI ignition

muffler, bolts and gaskets

spark plug

throttle arm extension

manual.

Weight:

Engine: 1.66 lb (755 g)

Muffler: 2.5 oz (70 g)

Ignition Module: 4.6 oz (130 g)

Total: Weight: 2.11 lb (955 g)

Technical Data:

Ignition Battery: 6-8.4NiCd or NiMH, 6.6V LiFe or 2S LiPo pack

Gasoline/Oil Mix: 30:1

Replacement Spark Plug: CM6 14mm

Idle Speed: 1800 rpm/min

Static Thrust:

17.68 lb (8 kg) @ 328 ft (100 m) altitude

15.87 lb (7.2 kg) @ 5,900 ft (1800 m) altitude
